Brand Name : | TIMKEN |
Model Number : | HM807049 |
Price : | USD 0.5-10 PCS |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1000 PCS/MON |
Delivery Time : | 3-15 DAYS |
Bearing Type : Tapered Roller Bearings | Brand : TIMKEN |
Weigh : 1.44KG | Material : Chrome Steel |
Seals Type : TS | Number of rolling elements : Single row |
Inner Packing : Carton/wooden box, packaging with a woven belt | Outer Packing : Carton/wooden box |
Stock : Great Supplying Ability | Supply a sample : Yes |
Bearing Specification
Bearing Designation | HM807049/HM807010 Bearing | |
series | Tapered roller bearings | |
Boundary Dimensions | Inner diameter (d) | 53.975 |
Foreign Economics (D) | 104.775 | |
Height (thickness) (B) | 36.512 | |
Basic Load Ratings | Dynamic Load Rating (Cr) | 154 |
Static load rating (Cor) | 204 | |
Limiting Speeds | Grease (Grease) | 4500 |
Oil lubrication (oil) | 6700 | |

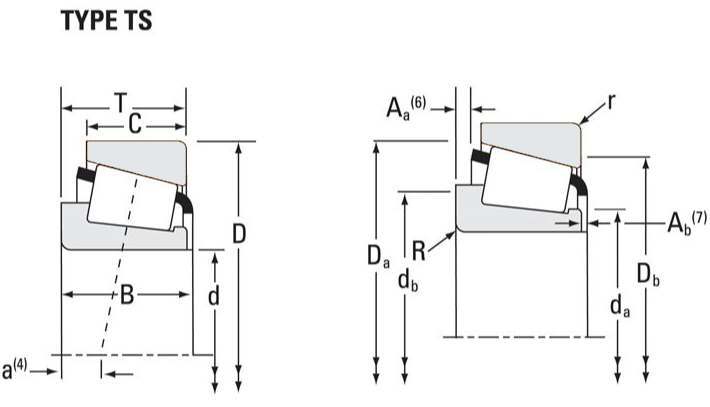

Single row tapered roller bearings |
da 62.99mm
Da 100.10 mm
db 72.90 mm
Db 88.90 mm
Aa 3 mm
Ab 2.5 mm
Recommended Model
Packing , Payment , Delievry and Stock
Packaging | |
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet | |
2)Industrial Bearings packaging | a)plastic tube + carton + pallet |
b). plastic bag +kraft paper + carton + pallet | |
3)According to the requirement of customers' | |
Payment | |
1) T/T:30% deposit, 70% should be paid before shipment. | |
2) L/C at sight. (high bank charge, not suggest, but acceptable ) | |
3) 100% Western Union in advance. (especially for air shipment or small amount) | |
Delivery | |
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient ) | |
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive ) | |
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time ) | |
Stock | |
1)Availability and supply capacity on a certain basis |
![]() |
