SKF 22320 CCJA/W33VA405 Spherical roller bearing SKF Bearing W33 - Lubrication Groove and 3 Holes

Bearing Type : Spherical Roller Bearing	Brand : SKF
Cage material : Steel Cage	Material : Steel
Number : Columns	Scope application : Industria and Construction Machinery
Inner Packing : Carton/wooden box, packaging with a woven belt	Outer Packing : Carton/wooden box
Stock : Great Supplying Ability	Supply a sample : Yes

Bearing Specification

Availability0 pcs
BrandSKF
Item Number22320CCJA/W33VA405 SKF
Technical details (CCJA/W33VA405)CC=Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Ring Centered On The Inner Ring. JA=Pressed Cage Of Unhardened Sheet Steel, Centred On The Outer Ring. W33=Lubrication Groove And Three Holes In Bearing Outer Ring. VA405=(Segment Rad. Int. Play, Code 4 & Segment Vibr. Scr. Ex., Code V)=Bearings For Vibratory Applications With Surface Hardened Cages.
CategorySpherical Roller Bearing
Inner (d) MM100
Outer (D) MM215
Width (B) MM73
Weight (kg)12.1
BoreC - Cylindrical Bore
Lubrication EnhancementW33 - Lubrication Groove and 3 Holes
SealNo Seal
Cage TypeS - Steel or Standard Cage
Manufacturer Part Number (MPN)22320CCJA/W33VA405
Radial Internal PlayC4 Internal Play (Higher than C3)
PrecisionStandard Precision
Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen ExecutionVibrating Screen Execution

Description

Model: 22328 CCJA/W33VA405
Type: spherical roller bearing
Suffix meaning:
CC: C type design spherical roller bearing, the guide of the roller has been improved; machined double buckle steel cage
JA: Hardened steel cage
W33: Outer ring (outer diameter) with oil groove and three oil holes
VA405: Bearings for Vibration Machinery

Bearing Size

da
min. 157 mm
Abutment diameter shaft
Da
max. 283 mm
Abutment diameter housing
ra
max. 3 mm
Fillet radius

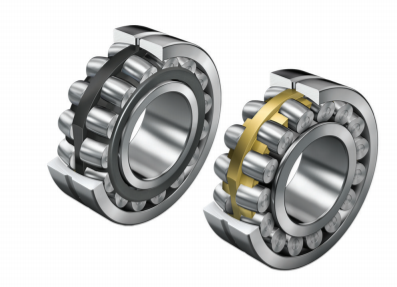

Product Picture
