NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K

Ask Lasest Price
Brand Name :	NTN
Model Number :	6203ZZ
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

NTN 6203ZZ / 6203 LLU Deep Groove Ball Bearings 17x40x12mm 6203ZZCM/5K

Bearing Type : Deep Groove Ball Bearing	Brand :NTN
Load Direction : Radial	Material : Chrome Steel
Seals Type : ZZ	Scope application : Industria and Construction Machinery
Inner Packing : Carton/wooden box, packaging with a woven belt	Outer Packing : Carton/wooden box
Stock : Great Supplying Ability	Supply a sample : Yes

Bearing Specification

Bore Diameter	17 mm
Outside Diameter	40 mm
Overall Width	12 mm
Bore Type	Round
Closure Type	Double Shielded
Row Type & Fill Slot	Single Row Non-Fill Slot
Snap Ring Included	Without Snap Ring
Internal Clearance	CN
Operating Temperature Range	-40 to 120 ºC
Dynamic Load Capacity	9600 N
Static Load Capacity	4600 N

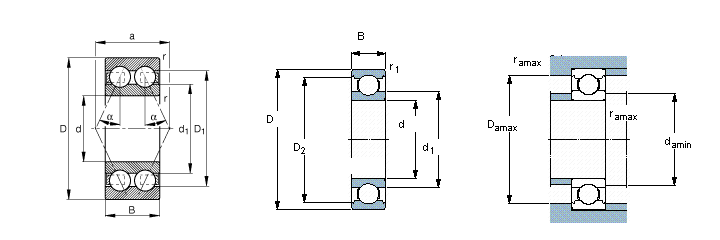

Abutment Dimensions

Boundary dimensions
mm

Basic load ratings

Factor

Limiting speeds

min^-1

Bearing numbers

dynamic

static

dynamic

static

rsmin^ 1)

rNS
min

kgf

grease
open type
ZZ LLB

oil
open type
Z LB

LLH

LLU

open
type

Cor

0.6

0.5

9.6

4.6

980

465

12.8

18 000

21 000

15 000

12 000

6203

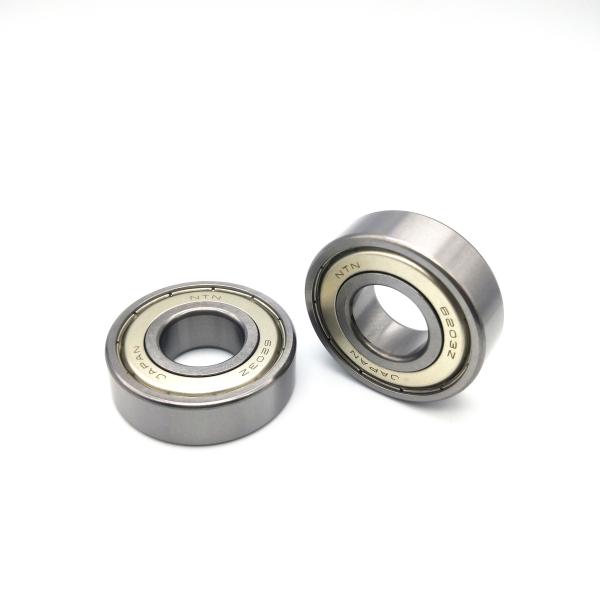

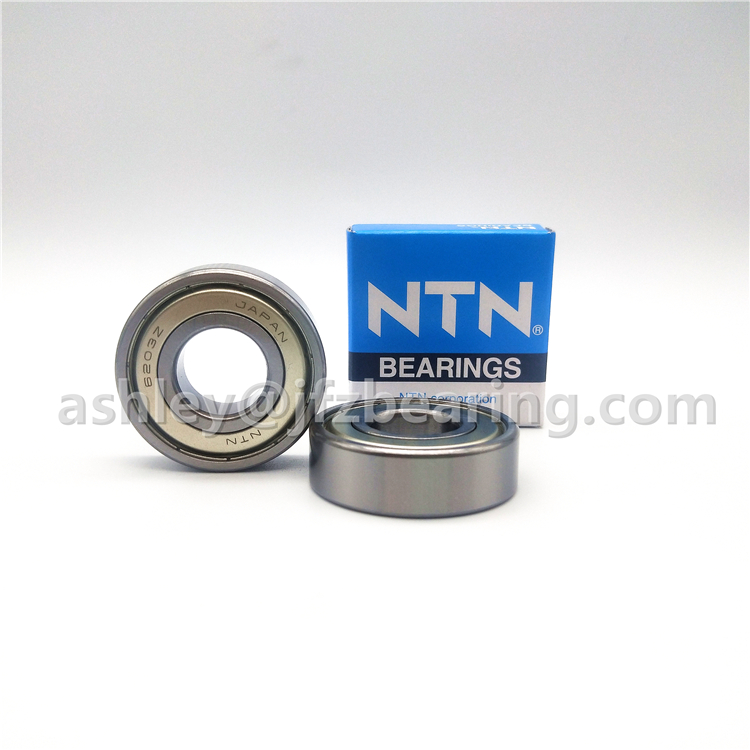

Product Picture

Recommended Model

6201ZZ / LLU , 6202ZZ / LLU , 6203ZZ / LLU , 6204ZZ /LLU , 6205ZZ / LLU , 6206ZZ / LLU and other model

We also provide Brand Bearing

If you need, please contact us,Catalog and sample can be offered,let me the model you need,i will quote to you For reference.

TIMKEN,FAG,SKF,INA,NSK,NTN,KOYO,ASAHI,IKO Bearing
