SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage

JFZ BEARING CO.,LTD
Contact Now
    Buy cheap SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage from wholesalers

    Buy cheap SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage from wholesalers
    • Buy cheap SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage from wholesalers
    • Buy cheap SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage from wholesalers
    • Buy cheap SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage from wholesalers

    SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage

    Ask Lasest Price
    Brand Name : SKF
    Model Number : 24024 CCK30/W33
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    SKF 24024 CCK30/W33 Spherical Roller Bearing - 120 mm ID, 180 mm OD, 60 mm Width, Tapered 1:30 Bore, Open, Steel Cage



    Bearing Type : Spherical Roller Bearing


    Brand : SKF


    Bore Type : Tapered 1:30

    Material : Steel


    Internal Clearance : CN


    Scope application : Industria and Construction Machinery


    Inner Packing : Carton/wooden box, packaging with a woven belt


    Outer Packing : Carton/wooden box


    Stock : Great Supplying Ability


    Supply a sample : Yes




    Dimensions

    d
    120 mm
    Bore diameter
    D
    180 mm
    Outside diameter
    B
    60 mm
    Width
    d2
    132 mm
    Shoulder diameter inner ring
    D1
    159 mm
    Shoulder/recess diameter outer ring
    b
    6 mm
    Width annular lubrication groove at outer ring
    K
    3 mm
    Diameter lubrication hole (outer ring)
    r1,2
    min. 2 mm
    Chamfer dimension outer ring
    Tapered bore, taper 1:30

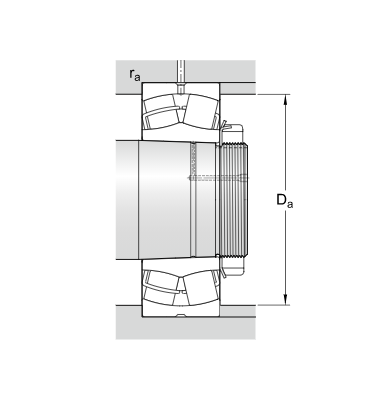

    Abutment Dimensions

    Da
    max. 171 mm
    Abutment diameter housing
    ra
    max. 2 mm
    Fillet radius



    Calculation Data

    C
    456 kN
    Basic dynamic load rating
    C0
    670 kN
    Basic static load rating
    Pu
    68 kN
    Fatigue load limit
    2 400 r/min
    Reference speed
    3 400 r/min
    Limiting speed
    e
    0.3
    Calculation factor
    Y1
    2.3
    Calculation factor
    Y2
    3.4
    Calculation factor
    Y0
    2.2
    Calculation factor
