Needle roller bearings NA69..-ZW, Dimension series 69, double row (INA (Schaeffler)) (NA6916-ZW-XL)- 80 mm Bore, 110 mm

Product Categories

JFZ BEARING CO.,LTD

Contact Now

Ask Lasest Price
Brand Name :	INA
Model Number :	NA6916-ZW-XL
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Bearing Type : Needle roller bearing	Brand : INA
Needle Bearing Type : Machined Bearing with Inner Rin	Material : Chrome Steel
Seals Type : Open	Flanges : With Flanges
Inner Packing : Carton/wooden box, packaging with a woven belt	Outer Packing : Carton/wooden box
Stock : Great Supplying Ability	Supply a sample : Yes

Main Dimensions & Performance Data

d	80 mm	Bore diameter
D	110 mm	Outside diameter
B	54 mm	Width
Cr	153,000 N	Basic dynamic load rating, radial
C0r	300,000 N	Basic static load rating, radial
Cur	54,000 N	Fatigue load limit, radial
nG	5,100 1/min	Limiting speed
nϑr	2,900 1/min	Reference speed
≈m	1,496.2 g	Weight

Temperature range

Tmin	-30 °C	Operating temperature min.
Tmax	120 °C	Operating temperature max.

The bearings:

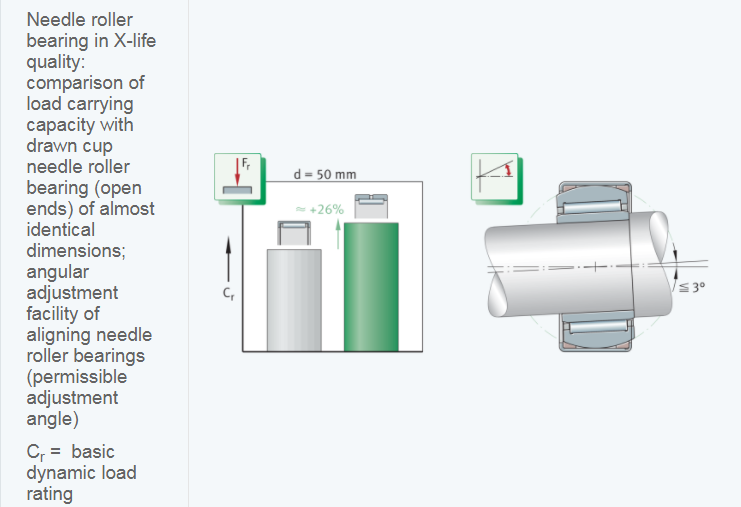

can support high to very high radial forces
are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required
can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
permit high speeds in spite of line contact
compensate misalignments between the shaft and housing (aligning needle roller bearings)
require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
are available in numerous sizes and designs
result in particularly compact, cost-effective and economical bearing arrangements

Recommended Model

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
