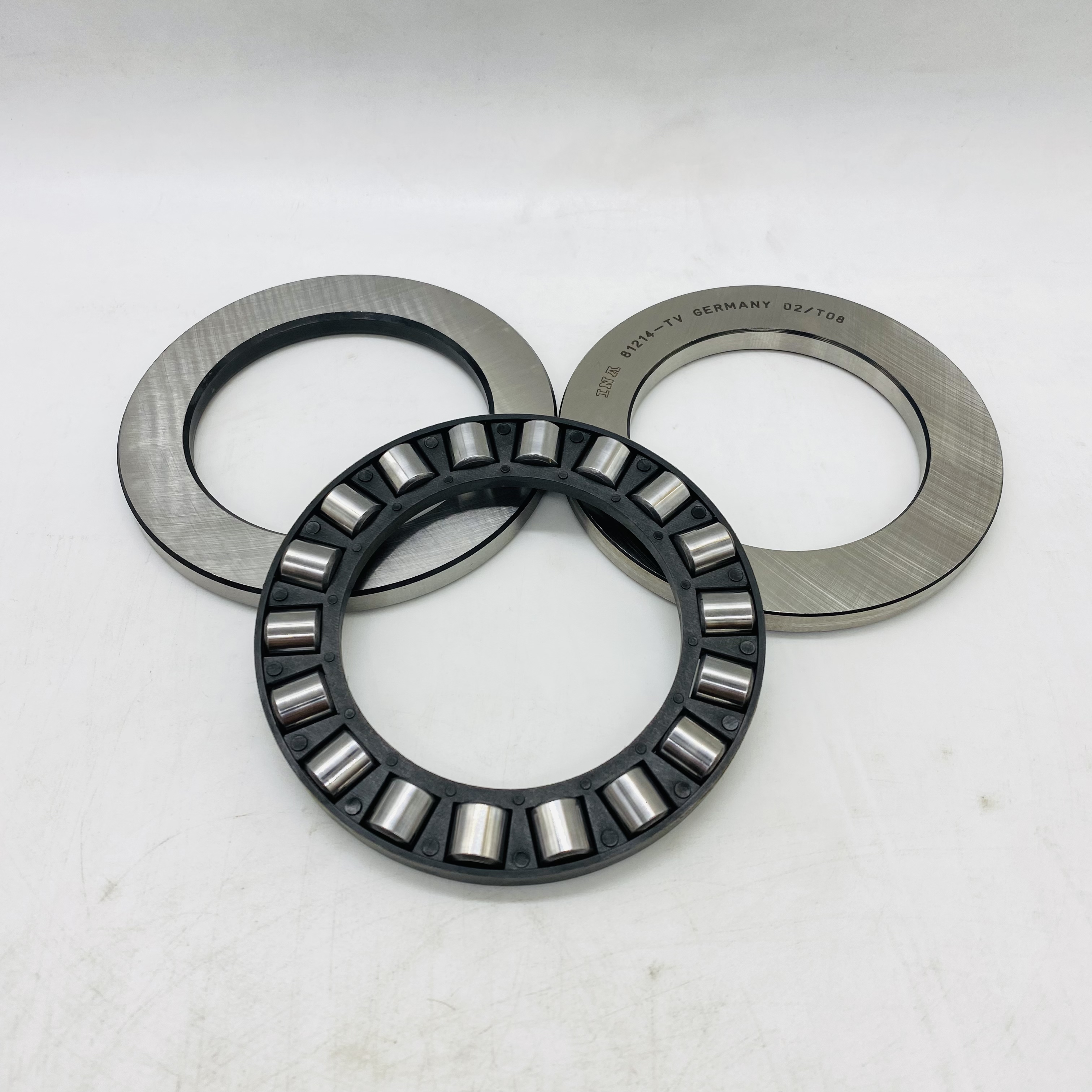

INA 81214-TV GERMANY 02-T08 Axial cylindrical roller bearings 812, single direction, comprising K812, GS, WS

Product Categories

JFZ BEARING CO.,LTD

Contact Now

Ask Lasest Price
Brand Name :	INA
Model Number :	81214-TV GERMANY 02-T08
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Bearing Type : Axial cylindrical roller bearing	Brand : INA
Weight : 0.768 KG	Material : Chrome Steel
Cage Type : P-Plastic Molded Cage	Precision : Standard Precision
Inner Packing : Carton/wooden box, packaging with a woven belt	Outer Packing : Carton/wooden box
Stock : Great Supplying Ability	Supply a sample : Yes

Main Dimensions & Performance Data

d	70 mm	Bore diameter
D	105 mm	Outside diameter
T	27 mm	Height
Ca	187,000 N	Basic dynamic load rating, axial
C0a	550,000 N	Basic static load rating, axial
Cua	54,000 N	Fatigue load limit, axial
nG	3,250 1/min	Limiting speed
nϑr	1,120 1/min	Reference speed
≈m	0.765 kg	Weight

	K81214-TV	Axial roller and cage assembly
D1	72 mm	Bore diameter housing washer
	GS81214	Housing Washer
d1	105 mm	Rip diameter shaft washer
	WS81214	Shaft washer
	LS85110	Track Washer
rmin	1 mm	Minimum chamfer dimension

Mounting dimensions

da min	102 mm	Minimum diameter shaft shoulder
Da max	74 mm	Maximum diameter of housing shoulder
ra max	1 mm	Maximum recess radius

Temperature range

Tmin	-30 °C	Operating temperature min.
Tmax	120 °C	Operating temperature max.

Technical information on Axial cylindrical roller bearings

Single and double row axial cylindrical roller bearings are particularly suitable where:

high axial and shock loads occur in one direction but no radial loads are present
the load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate (in this case, bearings of series 811 and 812 are especially suitable)
the bearing arrangement must have very high axial rigidity
the axial space available is very small
the bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
the bearing parts can or must be mounted separately
the bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used

Recommended Model

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
