SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance

Product Categories
JFZ BEARING CO.,LTD
Contact Now
    Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers

    Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers
    • Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers
    • Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers
    • Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers
    • Buy cheap SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance from wholesalers

    SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance

    Ask Lasest Price
    Brand Name : SKF
    Model Number : 6314
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    SKF 6314 Radial/Deep Groove Ball Bearing - Round Bore, 70 mm ID, 150 mm OD, 35 mm Width, Open, C3 Internal Clearance

    Specifications

    Brand

    SKF

    Inside Diameter

    70mm

    Outside Diameter

    150mm

    Ball Bearing Type

    Deep Groove

    Race Width

    35mm

    End Type

    Open

    Number of Rows

    1

    Static Load Rating

    68kN

    Material

    Steel

    Cage Material

    Steel

    Race Type

    Plain

    Dynamic Load Rating

    111kN

    Bore Type

    Parallel

    Country of Origin

    FR


    DIMENSIONS

    d
    70 mm
    		Bore diameter
    D
    150 mm
    		Outside diameter
    B
    35 mm
    		Width
    d1
    ≈94.95 mm
    		Shoulder diameter
    D2
    ≈129.9 mm
    		Recess diameter
    r1,2
    min.2.1 mm
    		Chamfer dimension

    CALCULATION DATA

    C
    111 kN
    		Basic dynamic load rating
    C0
    68 kN
    		Basic static load rating
    Pu
    2.75 kN
    		Fatigue load limit
    9 500 r/min
    		Reference speed
    6 300 r/min
    		Limiting speed
    kr
    0.03
    		Minimum load factor
    f0
    13.2
    		Calculation factor

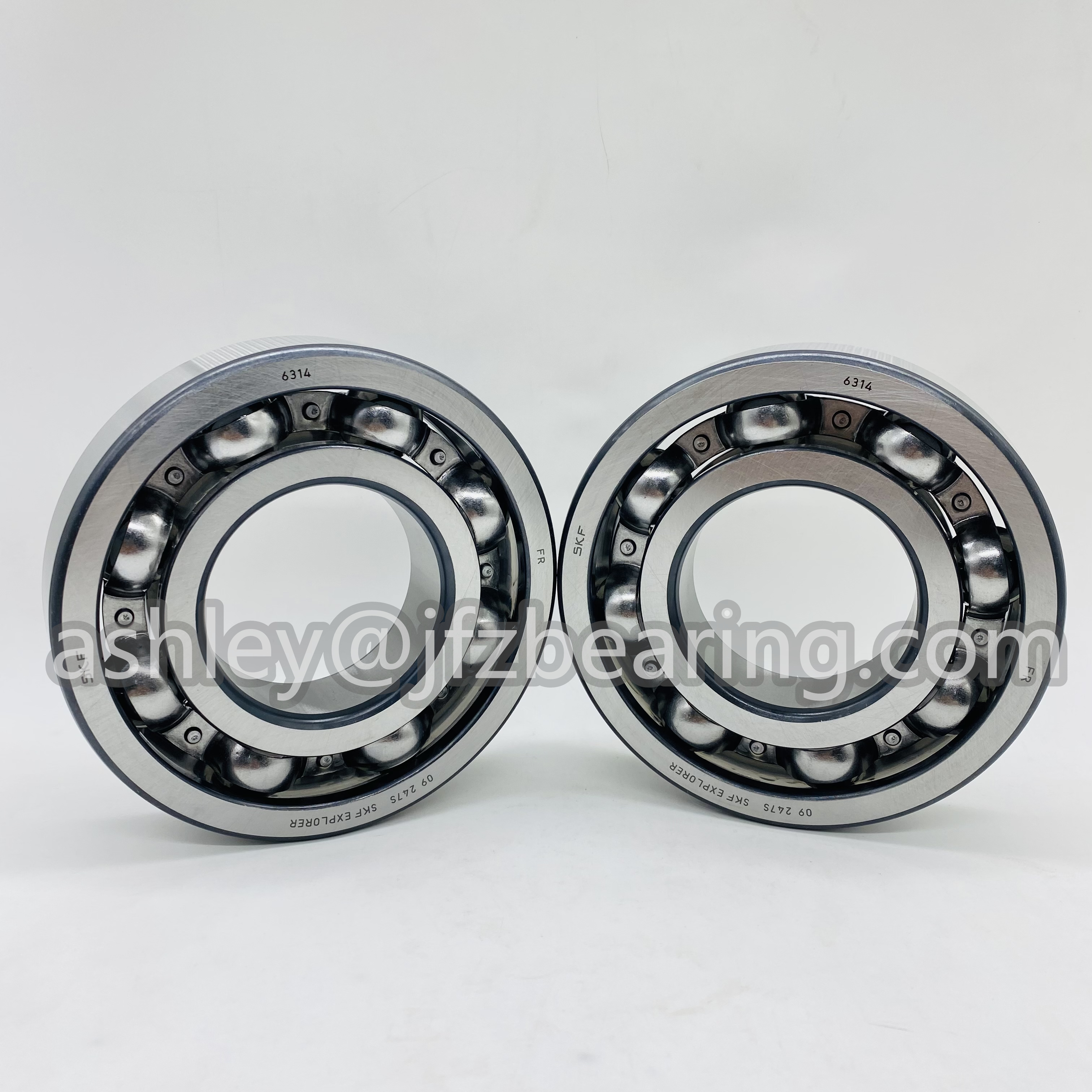

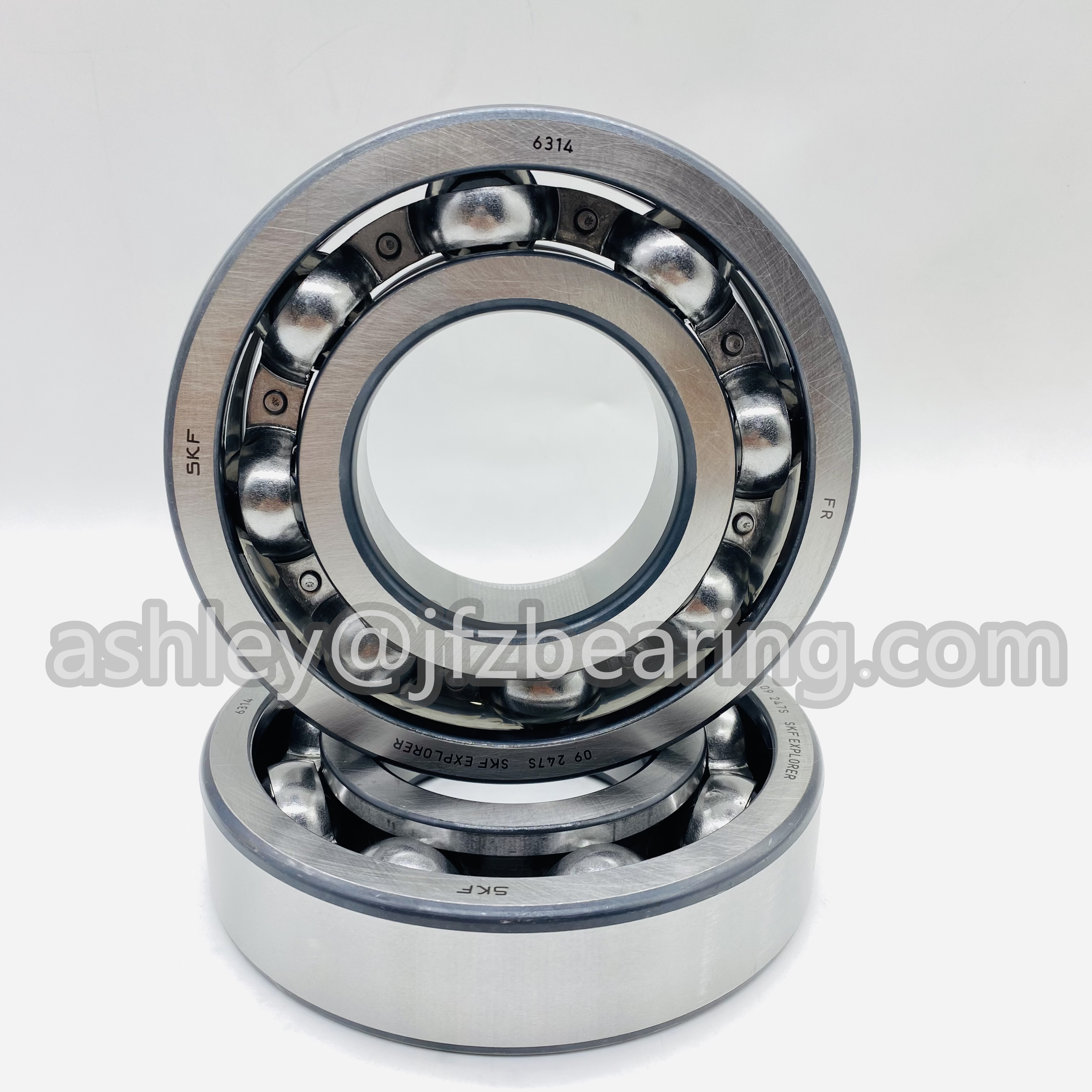

    Product Picture


    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
