SKF NU 313 ECM/C3 Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Straight Bore, High Capacity, C3 Clearan

Ask Lasest Price
Brand Name :	SKF
Model Number :	NU 313
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

SKF NU 313 ECM/C3 Cylindrical Roller Bearing, Single Row, Removable Inner Ring, Straight Bore, High Capacity, C3 Clearan

Bearing Type : Cylindrical Roller Bearing	Brand :SKF
Bore Type : Straight	Weight : 2.2 KG
Internal Clearance : C0	Scope application : Industria and Construction Machinery
Inner Packing : Carton/wooden box, packaging with a woven belt	Outer Packing : Carton/wooden box
Stock : Great Supplying Ability	Supply a sample : Yes

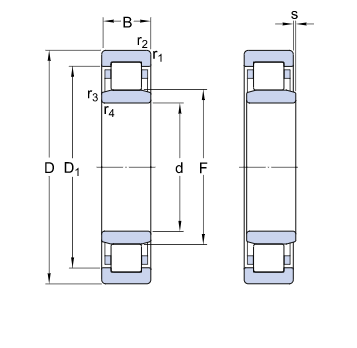

DIMENSIONS

d	65 mm	Bore diameter
D	140 mm	Outside diameter
B	33 mm	Width
D1	≈117.5 mm	Shoulder diameter of outer ring
F	82.5 mm	Chamfer dimension of loose flange ring
r1,2	min.2.1 mm	Chamfer dimension
r3,4	min.2.1 mm	Chamfer dimension
s	max.2.2 mm	Permissible axial displacement

CALCULATION DATA

C	212 kN	Basic dynamic load rating
C0	196 kN	Basic static load rating
Pu	25.5 kN	Fatigue load limit
	5 300 r/min	Reference speed
	6 000 r/min	Limiting speed
kr	0.15	Minimum load factor
e	0.2	Limiting value
Y	0.6	Axial load factor

Product Picture

Recommended Model

GE40ES-2RS,GE45ES-2RS,GE50ES-2RS,GE60ES-2RS,GE70ES-2RS,GE80ES-2RS,GE90ES-2RS,GE100ES-2RS,GE110ES-2RS,GE120ES-2RS,GE140ES-2RS,GE160ES-2RS,XB-3,XB-4,XB-5

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
