GE80-SX Spherical plain bearing Angular contact spherical plain bearing,requiring maintenance, sliding contact surface:

Ask Lasest Price
Brand Name :	INA
Model Number :	GE80-SX
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

GE80-SX Spherical plain bearing Angular contact spherical plain bearing,requiring maintenance, sliding contact surface:

We export high quantities INA GE80SX Bearing and relative products, we have huge stocks for INA GE80SX Bearing and relative items, we supply high quality INA GE80SX Bearing with reasonbable price or we produce the bearings along with the technical data or relative drawings, It's priority to us to supply best service to our clients. If you are interested in INA GE80SX Bearing,please email us ashley@jfzbearing.com so the suppliers will contact you directly.

Main Dimensions & Performance Data

d	80 mm	Inner diameter bearing
D	125 mm	Outside diameter bearing
T	29 mm	Height
Cr	245,000 N	Basic dynamic load rating, radial
C0r	1,220,000 N	Basic static load rating, radial
≈m	1.397 kg	Weight

Dimensions

dK	115 mm	Ball diameter
d2	104 mm	Connection measure Inner ring
D1	90.5 mm	Inner diameter of housing washer
B	27 mm	Width Inner ring
C	27 mm	Width Outer ring
s	10 mm	Plane Surface Spacing
A	14.5 mm	Distance lubrication Bore
α	2 °	Tilt angle
dOT	0 mm	Bore diameter bearing, upper tolerance
dUT	-0.015 mm	Bore diameter bearing, lower tolerance
DOT	0 mm	Outer diameter, upper tolerance
DUT	-0.02 mm	Outside diameter, lower tolerance
TOT	0.25 mm	Height, upper tolerance
TUT	-0.25 mm	Height, lower tolerance
COT	0 mm	Width outer ring, upper tolerance
BOT	0 mm	Width inner ring, upper tolerance
BUT	-0.3 mm	Width inner ring, lower tolerance

Mounting dimensions

r1smin	1.5 mm	Edge Spacing
r2smin	0.6 mm	Edge Spacing
da max	88 mm	Connection measure Inner ring
Da min	99 mm	Housing Connection Diameter
Db min	117 mm	Connection diameter

Temperature range

Tmin	-60 °C	Operating temperature min.
Tmax	200 °C	Operating temperature max.

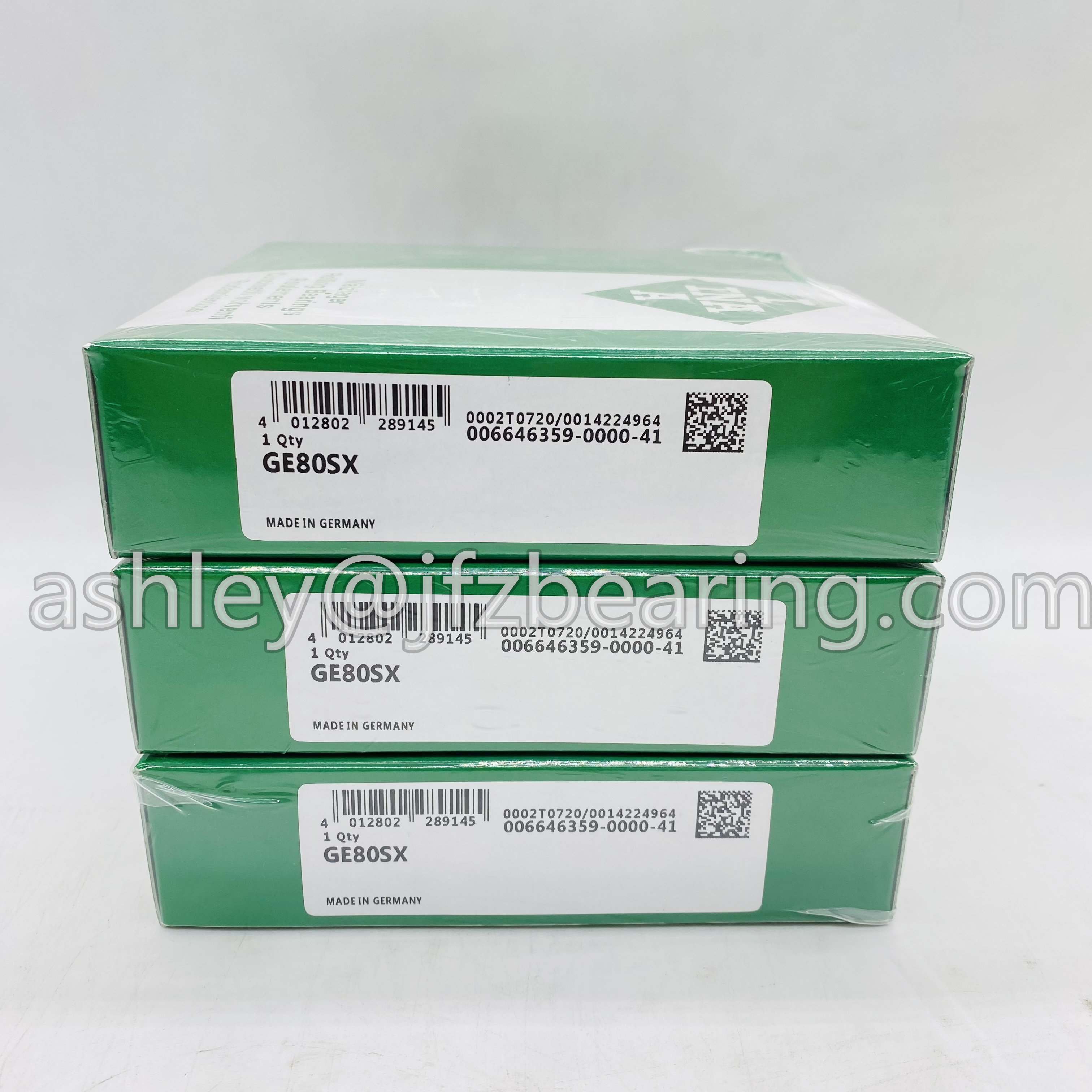

Product Pictures

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
