    SKF 33018/Q Tapered Roller Bearing Full Assembly - 90 mm Bore, 140 mm OD, 39 mm Cone Width, 32.5 mm Cup Width

    Ask Lasest Price
    Brand Name : SKF
    Model Number : 33018/Q
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    SKF 33018/Q Tapered Roller Bearing Full Assembly - 90 mm Bore, 140 mm OD, 39 mm Cone Width, 32.5 mm Cup Width

    SKF Metric taper roller bearing priced cup & cone together 90mm inside x 140mm outside x 39mm width

    SKF Taper roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes taper roller bearings particularly suitable for the accommodation of combined (radial and axial) loads.
    Taper roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup (outer ring).
    SKF taper roller bearings have the logarithmic contact profile that provides optimum stress distribution over the roller/raceway contacts. The special design of the sliding surfaces of the guide flange and large roller ends considerably promote lubricant film formation in the roller end/flange contacts. The resulting benefits include increased operational reliability and reduced sensitivity to misalignment.


    DIMENSIONS

    d
    90 mm
    Bore diameter
    D
    140 mm
    Outside diameter
    T
    39 mm
    Total bearing width
    d1
    114 mm
    Inner ring shoulder diameter
    B
    39 mm
    Width inner ring
    C
    32.5 mm
    Width outer ring
    r1,2
    min.2 mm
    Corner radius inner ring
    r3,4
    min.1.5 mm
    Corner radius outer ring
    a
    27.389 mm
    Distance pressure point

    ABUTMENT DIMENSIONS

    da
    max.101 mm
    Abutment diameter shaft
    db
    min.101 mm
    Abutment diameter shaft
    Da
    min.127 mm
    Abutment diameter housing
    Da
    max.131 mm
    Abutment diameter housing
    Db
    min.135 mm
    Abutment diameter housing
    Ca
    min.7 mm
    Abutment housing - axial space at the large side face/ both sides of the outer ring
    Cb
    min.6.5 mm
    Abutment housing - axial space at the small side face/ both sides of the outer ring
    ra
    max.2 mm
    Fillet radius
    rb
    max.1.5 mm
    Fillet radius

    CALCULATION DATA

    Basic dynamic load ratingC
    266 kN
    Basic static load ratingC0
    355 kN
    Fatigue load limitPu
    39 kN
    Reference speed
    3 600 r/min
    Limiting speed
    4 500 r/min
    Calculation factore
    0.27
    Calculation factorY
    2.2
    Calculation factorY0
    1.3

    MASS

    Mass bearing
    2.2 kg

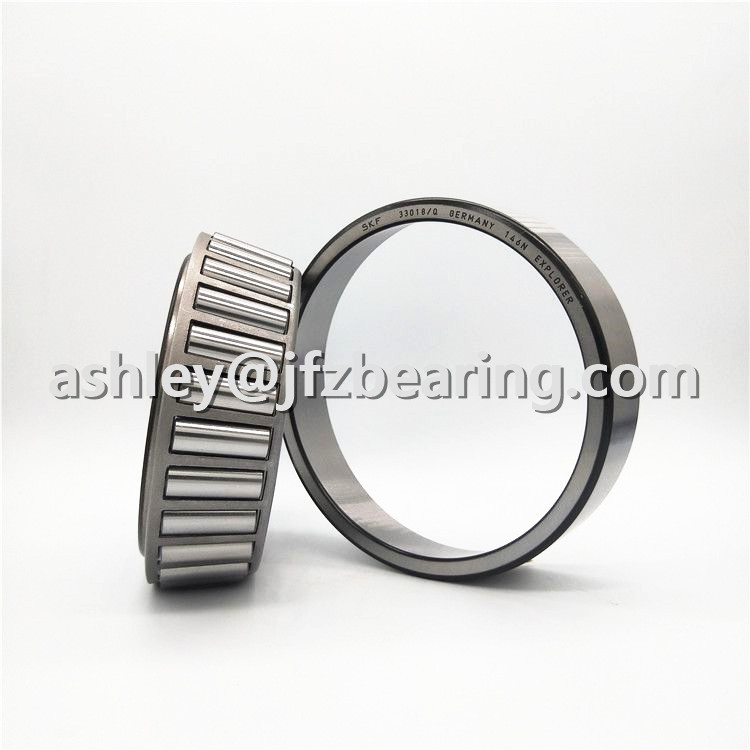

    Product Picture



    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
