    302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08

    Ask Lasest Price
    Brand Name : NSK
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    302/28 CHL Tapered roller bearings, single row - Popular item - NSK Explorer, 302/28 CHL, 15-08

    Design:

    The bearing consists of two rings (inner and outer) and rolling elements (tapered rollers) which are connected by a cage. The inner ring with a cage and rolling elements is a CONE. The outer ring is a CUP.
    The design of tapered roller bearings suites for the perception of combined (radial and axial) loads. Tapered roller bearings have a split construction: the inner ring with the rollers and separator create the unit, that can be mounted separately from the outer ring. This tapered roller bearing is inches.

    Features:

    Tapered roller bearing;
    Metric dimensions

    DIMENSIONS

    d
    28 mm
    Bore diameter
    D
    58 mm
    Outside diameter
    T
    17.25 mm
    Total bearing width
    d1
    42 mm
    Inner ring shoulder diameter
    B
    16 mm
    Width inner ring
    C
    14 mm
    Width outer ring
    r1,2
    min.1 mm
    Corner radius inner ring
    r3,4
    min.1 mm
    Corner radius outer ring
    a
    13.155 mm
    Distance pressure point

    ABUTMENT DIMENSIONS

    da
    max.35 mm
    Abutment diameter shaft
    db
    min.35 mm
    Abutment diameter shaft
    Da
    min.50 mm
    Abutment diameter housing
    Da
    max.52 mm
    Abutment diameter housing
    Db
    min.54 mm
    Abutment diameter housing
    Ca
    min.2 mm
    Abutment housing - axial space at the large side face/ both sides of the outer ring
    Cb
    min.3 mm
    Abutment housing - axial space at the small side face/ both sides of the outer ring
    ra
    max.1 mm
    Fillet radius
    rb
    max.1 mm
    Fillet radius

    CALCULATION DATA

    Basic dynamic load ratingC
    46.6 kN
    Basic static load ratingC0
    41.5 kN
    Fatigue load limitPu
    4.4 kN
    Reference speed
    10 000 r/min
    Limiting speed
    12 000 r/min
    Calculation factore
    0.37
    Calculation factorY
    1.6
    Calculation factorY0
    0.9

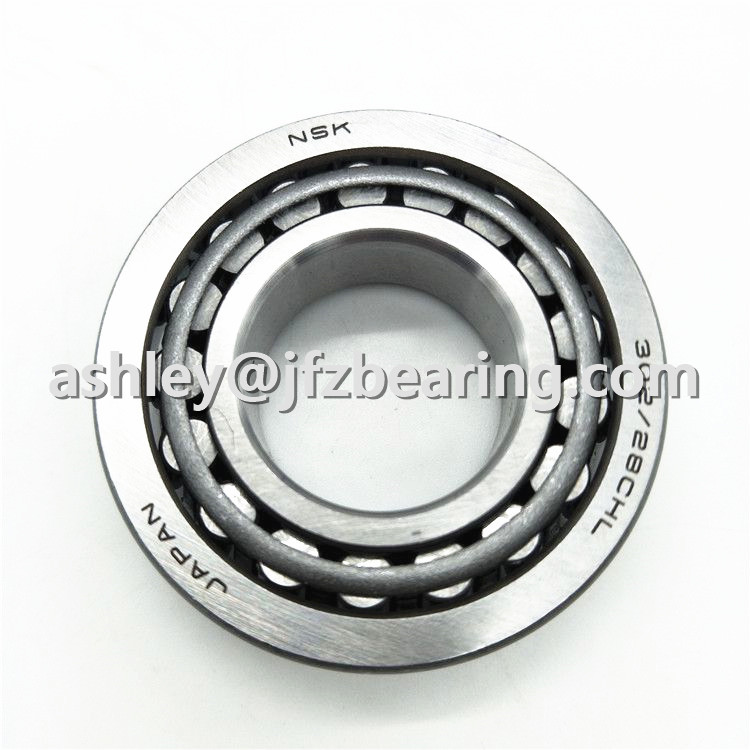

    Product Picture


    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
