    Double Row NSK Cylindrical Bore Bearing NN 3018 (NSK)

    Ask Lasest Price
    Brand Name : NSK
    Model Number : NN 3018
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    Double Row NSK Cylindrical Bore Bearing NN 3018 (NSK)

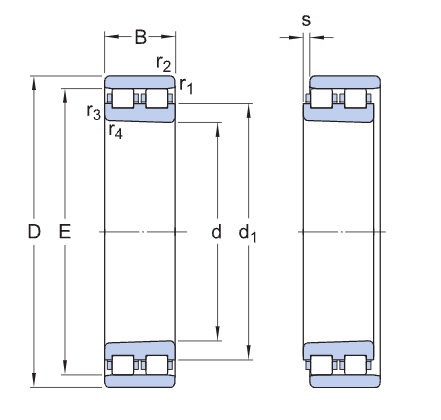

    DIMENSIONS

    d
    90 mm
    Bore diameter
    D
    140 mm
    Outside diameter
    B
    37 mm
    Width
    d1
    109.4 mm
    Shoulder diameter inner ring (NN design)
    E
    127 mm
    Raceway diameter outer ring (NN design)
    r1,2
    min.1.5 mm
    Chamfer dimension outer ring
    r3,4
    min.1 mm
    Chamfer dimension inner ring (bearing with tapered bore)
    s
    max.2 mm
    Permissible axial displacement from the normal position of one bearing ring relative to the other (all)
    Tapered bore, taper 1:12

    ABUTMENT DIMENSIONS

    da
    min.98 mm
    Abutment diameter shaft
    Da
    min.129 mm
    Abutment diameter housing
    Da
    max.132 mm
    Abutment diameter housing
    dn
    125.4 mm
    Oil nozzle position (not for variants with TNHA cage)

    CALCULATION DATA

    Basic dynamic load ratingC
    138 kN
    Basic static load ratingC0
    216 kN
    Fatigue load limitPu
    26 kN
    Attainable speed for grease lubrication
    6 300 r/min
    Attainable speed for oil-air lubrication
    7 000 r/min
    Reference grease quantityGref
    11.1 cm³
    Static radial stiffness (guideline value)
    2 010 N/µm

    MASS

    Mass bearing
    1.95 kg

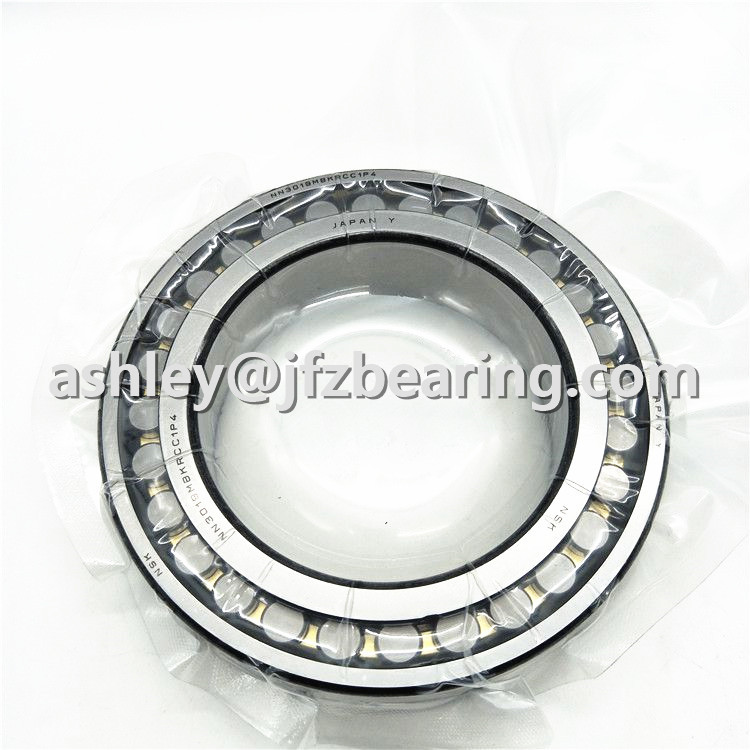

    Product Picture


    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
