    SKF 32318 J2 - SINGLE ROW TAPERED ROLLER BEARING WITH METRIC DIMENSIONS,90x190x67.5 mm

    Ask Lasest Price
    Brand Name : SKF
    Model Number : 32318 J2
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    SKF 32318 J2 - SINGLE ROW TAPERED ROLLER BEARING WITH METRIC DIMENSIONS,90x190x67.5 mm


    DIMENSIONS

    d
    90 mm
    Bore diameter
    D
    190 mm
    Outside diameter
    T
    67.5 mm
    Total bearing width
    d1
    133.9 mm
    Inner ring shoulder diameter
    B
    64 mm
    Width inner ring
    C
    53 mm
    Width outer ring
    r1,2
    min.4 mm
    Corner radius inner ring
    r3,4
    min.3 mm
    Corner radius outer ring
    a
    44.3 mm
    Distance pressure point

    ABUTMENT DIMENSIONS

    da
    max.109 mm
    Abutment diameter shaft
    db
    min.105.5 mm
    Abutment diameter shaft
    Da
    min.157 mm
    Abutment diameter housing
    Da
    max.177.5 mm
    Abutment diameter housing
    Db
    min.177 mm
    Abutment diameter housing
    Ca
    min.7 mm
    Abutment housing - axial space at the large side face/ both sides of the outer ring
    Cb
    min.14.5 mm
    Abutment housing - axial space at the small side face/ both sides of the outer ring
    ra
    max.4 mm
    Fillet radius
    rb
    max.3 mm
    Fillet radius

    CALCULATION DATA

    Basic dynamic load ratingC
    487 kN
    Basic static load ratingC0
    610 kN
    Fatigue load limitPu
    65.5 kN
    Reference speed
    2 600 r/min
    Limiting speed
    3 600 r/min
    Calculation factore
    0.35
    Calculation factorY
    1.7
    Calculation factorY0
    0.9

    MASS

    Mass bearing
    8.42 kg

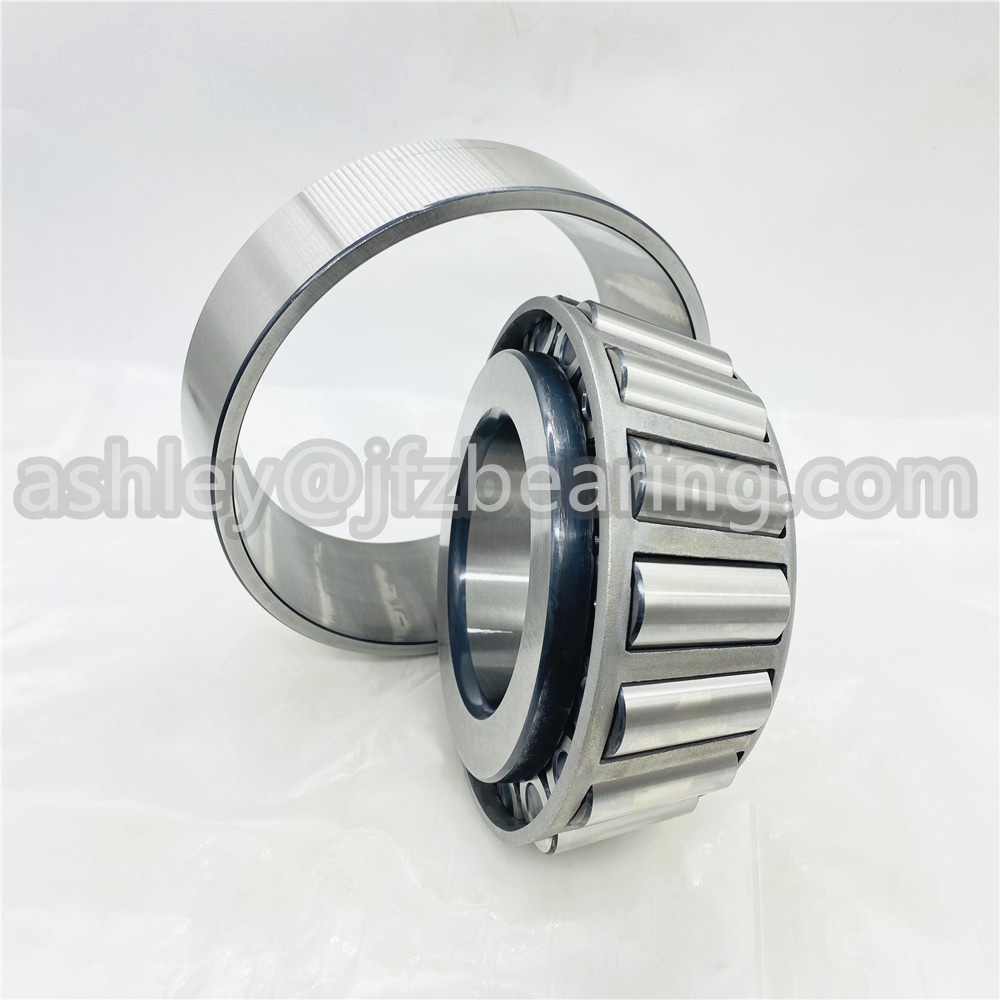

    Product Picture

    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
