    SKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centred

    Ask Lasest Price
    Brand Name : SKF
    Model Number : NU 313 EC
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    SKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centred

    PRODUCT DETAILS

    • Radial Bearing Type
    • Single Row
    • Round Bore Type
    • 65 mm Inside Diameter
    • 140 mm Outside Diameter

    DESCRIPTION

    • The EC design contains improvements in guiding surfaces of flanges and roller ends, which means that EC bearings have a high axial load-carrying capacity.

    APPLICATIONS

    • Traction motors
    • Electric motors
    • Gearboxes

    FEATURES

    • Improved roller-end-to-flange contact
    • Increased capacity

    COMPLIANCES

    • In accordance with ISO 15-1981

    FOOTNOTE

    • Double Flange Outer Ring and Single Flange Inner Ring

    DIMENSIONS

    d
    65 mm
    Bore diameter
    D
    140 mm
    Outside diameter
    B
    33 mm
    Width
    D1
    117.5 mm
    Shoulder diameter of outer ring
    F
    82.5 mm
    Chamfer dimension of loose flange ring
    r1,2
    min.2.1 mm
    Chamfer dimension
    r3,4
    min.2.1 mm
    Chamfer dimension
    s
    max.2.2 mm
    Permissible axial displacement

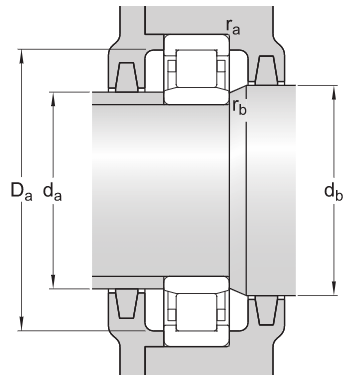

    ABUTMENT DIMENSIONS

    da
    min.77 mm
    Diameter of spacer sleeve
    da
    max.80 mm
    Diameter of spacer sleeve
    db
    min.85 mm
    Diameter of shaft abutment
    Da
    max.127.8 mm
    Diameter of housing abutment
    ra
    max.2 mm
    Radius of fillet
    rb
    max.2 mm
    Radius of fillet

    ALCULATION DATA

    Basic dynamic load ratingC
    212 kN
    Basic static load ratingC0
    196 kN
    Fatigue load limitPu
    25.5 kN
    Reference speed
    5 300 r/min
    Limiting speed
    6 000 r/min
    Minimum load factorkr
    0.15
    Limiting valuee
    0.2
    Axial load factorY
    0.6


    PRODUCT PICTURE

    SKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centredSKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centredSKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centredSKF NU 313 EC (Type EC Cylindrical Roller Bearing), single row, rolling element centred


    Packing , Payment , Delievry and Stock


    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
