SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Product Categories

JFZ BEARING CO.,LTD

Contact Now

W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Ask Lasest Price
Brand Name :	SKF
Model Number :	22326 CC/W33
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material

Description

This 22326 CC/W33 bearing is a Spherical Roller Bearing with a guide ring centred on a flangeless inner ring, two stamped steel cages, an annular groove in the outer ring with three lubrication holes and a normal radial internal clearance. The bearing's dimensions are 130x280x93.

223	26	CC				W33
Extra Heavy, Wide	130mm - Bore Size	Flangeless Inner Ring with Stamped Steel Cages	Cylindrical Bore	Stamped Steel Cage	Standard Clearance	Annular Groove and Three Lubrication Holes in the Outer Ring

Product Information

BRAND:
SKU:: 22326CC/W33-SKF
AVAILABILITY:: IN STOCK
WEIGHT:: 29.0000 KGS

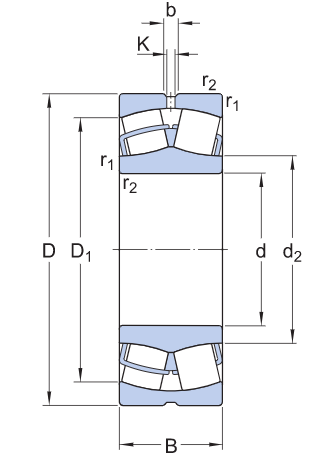

Technical Data

INSIDE DIAMETER (MM):: 130MM
OUTSIDE DIAMETER (MM):: 280MM
WIDTH (MM):: 93MM
CAGE TYPE:: STEEL
SEALS OR SHIELDS:: OPEN TYPE
CLEARANCE:: STANDARD
DYNAMIC LOAD RATING (KN):: 1120
STATIC LOAD RATING (KN):: 1320
FATIGUE LOAD RATING (KN):: 114
REFERENCE SPEED RATING (R/MIN):: 1800
LIMITING SPEED RATING (R/MIN):: 2400

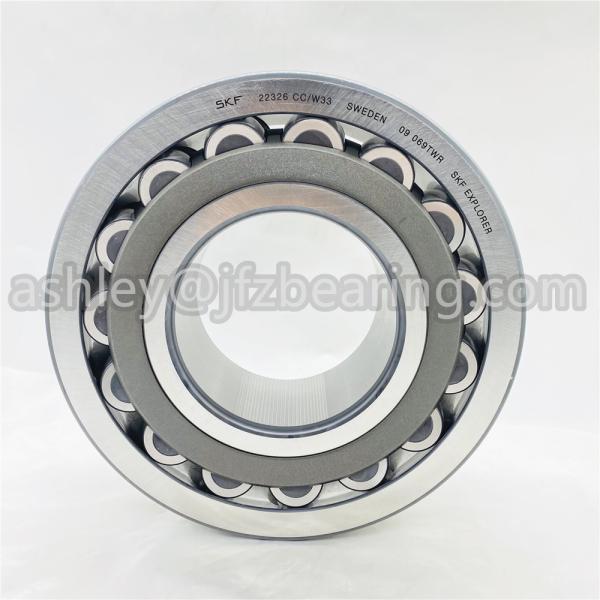

Product Picture

Packing , Payment , Delievry and Stock

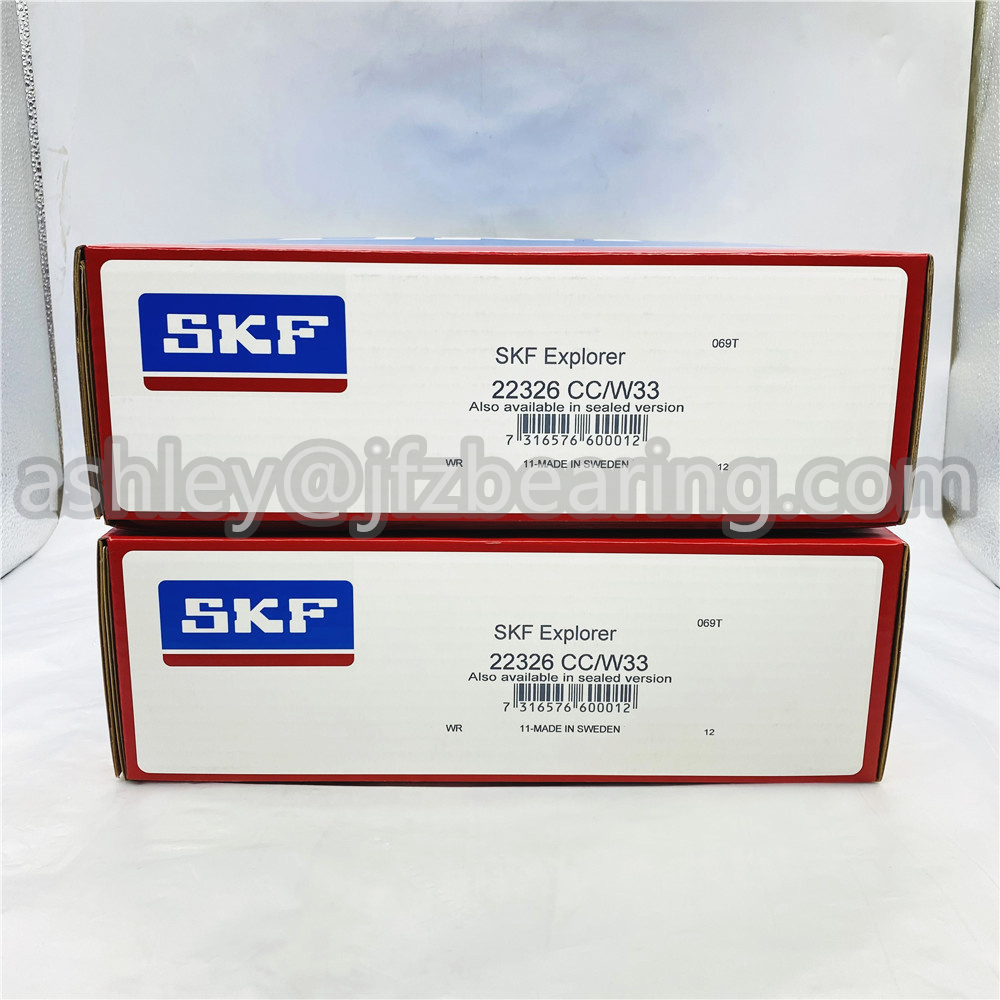

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

SKF 22326 CC/W33 22326 CC/W33 Double Row Spherical Roller Bearing, Cyl. bore, Open, Steel cage,- Steel Cage Material
