JFZ 1680207 ,1680208, 1680205 Good Quality, Tapered Bore Special Agricultural Ball Bearings With Adapter Sleeves

Product Categories

JFZ BEARING CO.,LTD

Contact Now

JFZ 1680207 ,1680208, 1680205 Good Quality, Tapered Bore Special Agricultural Ball Bearings With Adapter Sleeves

Ask Lasest Price
Brand Name :	JFZ
Model Number :	1680207
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

JFZ 1680207 ,1680208, 1680205 Good Quality, Tapered Bore Special Agricultural Ball Bearings With Adapter Sleeves

1680207 apered Bore Special Agricultural Ball Bearings dimensions

New Designations :

1680207

Main demensions :

35 × 80 × 36

Bore Dia × Outside Dia × Width Dia (mm)

ID :

35 mm

Inside diameter/Bore size

OD :

80 mm

Outside diameter

T(B) :

36 mm

Thickness/high/width

M :

0.62 kg

Weight, Mass

Category :

Deep Groove Ball Bearings

Deep Groove Ball Bearings 1680207 , 0.62 kg Bearing mass, (35*80*36 mm), 35 mm d (Bore: diameter of the inner ring), 80 mm D (Outside: diameter of the outer cylindrical surface of the outer ring), 36 mm B (Width: nominal width of the bearing),

1680207 Speical Agricultural Bearings with Adapter Sleeve, it is designed especially for extemely dirty or wet conditions. Bearings feature R-seals with flared lips which firmly contact the ground O.D.of the Inner Ring to provide a positive seal against dust, dirt and other contaminants and effectively retain the lubricant. Bearings are made with quality Chrome steel. It is as known as:

SKF: 1680207
FAG: 1680207
GPZ: 1680207
Old model: UK207/YA

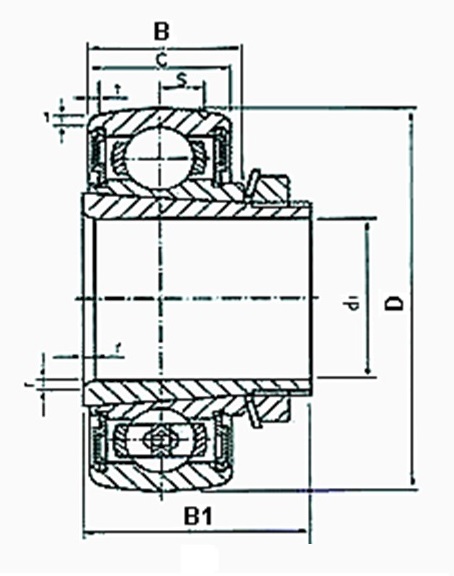

DIMENSIONS:
BORE: 35mm
O.D.: 80mm Spherical
IR Width: 23mm
OR Width: 21mm
Sleeve width: 36mm
Material: DIN 100Cr6
Unit weight: 0.65kg

Looking for ideal 1680207 Agricultural Bearings Manufacturer & supplier ? We have a wide selection at goods prices to help you get creative. All the 1680207 Insert Bearing are quality guaranteed. We are China Origin Factory of 1680207 JFZ BEARING. If you have any question, please feel free to contact us.

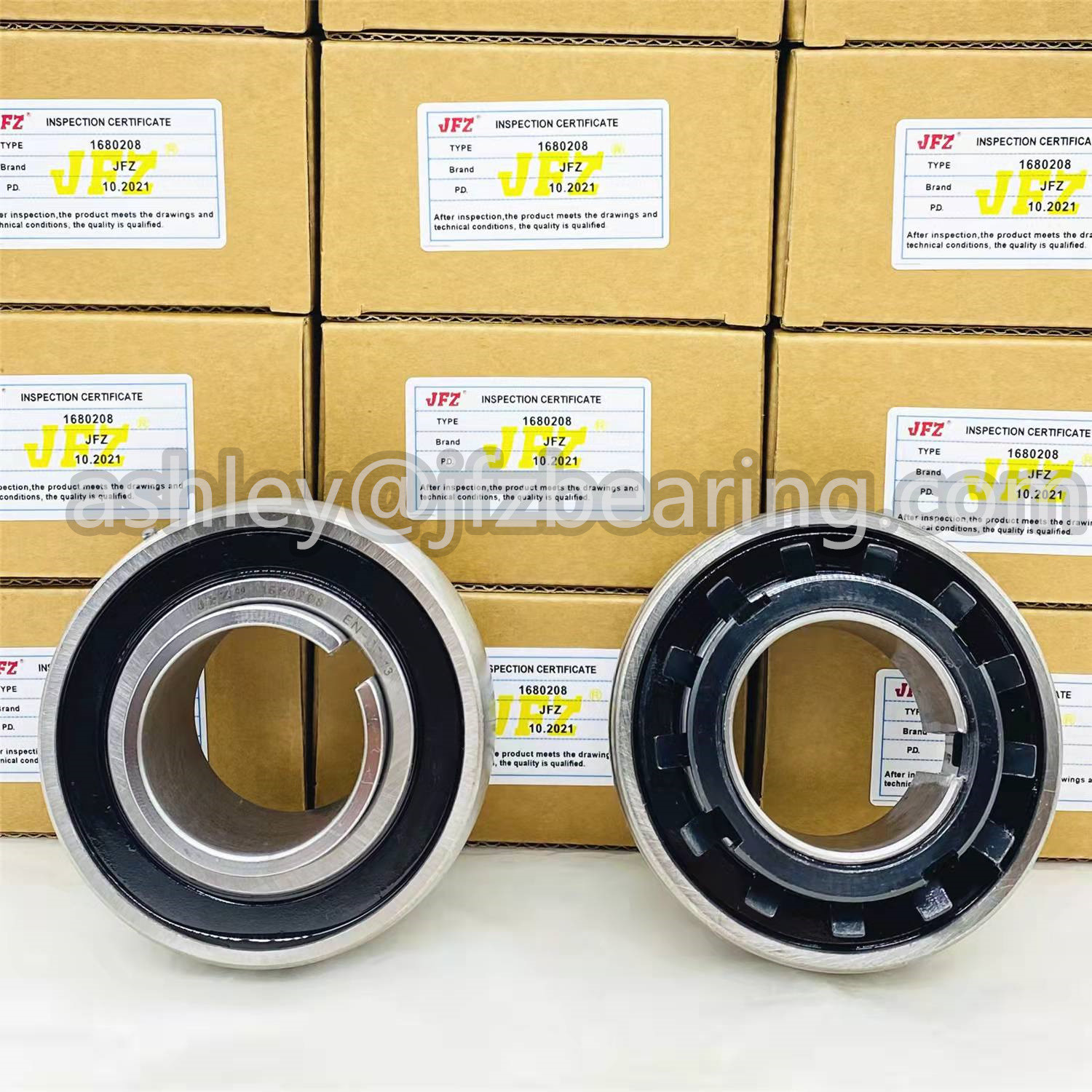

Product Picture

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
