    Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring

    Ask Lasest Price
    Brand Name : ISB
    Model Number : GEEM 50 ES 2RS
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    Radial spherical plain bearings GEEM 50 ES 2RS, Radial Spherical Plain Bearing - 50 mm Bore, 75 mm OD, 43 mm Inner Ring

    DIMENSIONS

    d
    50 mm
    		Bore diameter
    D
    75 mm
    		Outside diameter
    B
    43 mm
    		Nominal width
    C
    28 mm
    		Width outer ring
    α
    4 °
    		Angle of tilt
    dk
    66 mm
    		Raceway diameter inner ring
    d1
    ≈57 mm
    		Shoulder diameter cylindrical extension inner ring
    b
    4.6 mm
    		Width annular lubrication groove at outer ring
    b1
    4.8 mm
    		Width annular lubrication groove at inner ring
    M
    3 mm
    		Diameter lubrication hole (outer ring)
    r1
    min.0.6 mm
    		Chamfer dimension bore
    r2
    min.1 mm
    		Chamfer dimension outer ring

    ABUTMENT DIMENSIONS

    da
    min.54.8 mm
    		Abutment diameter shaft
    da
    max.57 mm
    		Abutment diameter shaft
    Da
    min.66.2 mm
    		Abutment diameter housing
    Da
    max.70.5 mm
    		Abutment diameter housing
    ra
    max.0.6 mm
    		Fillet radius shaft
    rb
    max.1 mm
    		Fillet radius housing

    CALCULATION DATA

    Basic dynamic load ratingC
    156 kN
    Basic static load ratingC0
    780 kN
    Specific dynamic load factorK
    100 N/mm²
    Specific static load factorK0
    500 N/mm²
    Material constantKM
    330

    MASS

    Mass plain bearing
    0.6 kg

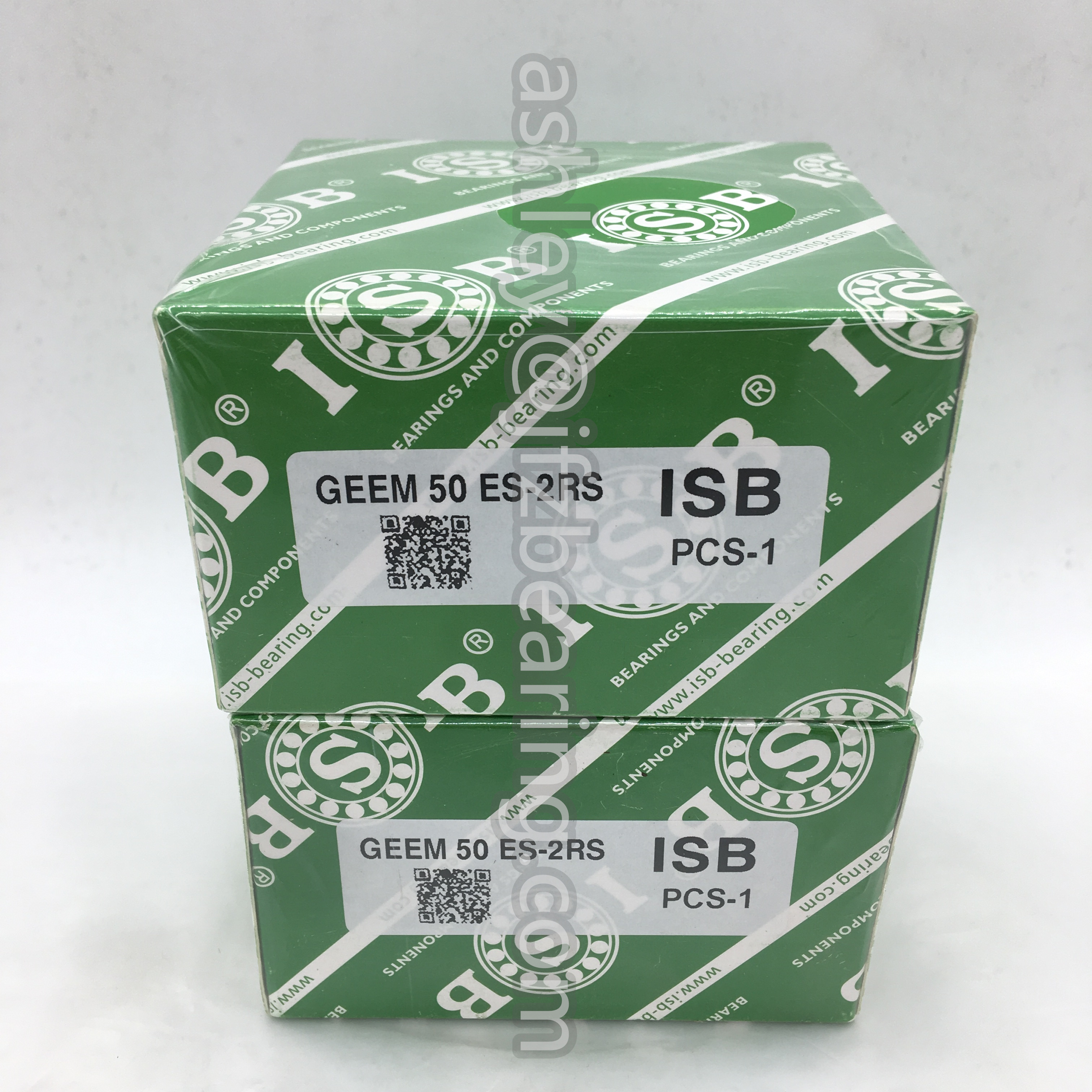

    Product Picture


    Packing , Payment , Delievry and Stock

    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
