TIMKEN Single row tapered roller bearing IsoClass™ 32944M-90KM1,Factory price, factory delivery. High quality.

Product Categories

JFZ BEARING CO.,LTD

Contact Now

TIMKEN Single row tapered roller bearing IsoClass™ 32944M-90KM1,Factory price, factory delivery. High quality.

Ask Lasest Price
Brand Name :	TIMKEN
Model Number :	32944M-90KM1
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

TIMKEN Single row tapered roller bearing IsoClass™ 32944M-90KM1,Factory price, factory delivery. High quality.

TIMKEN 32944 bearing description

Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction. Single row tapered roller bearings are separable, i.e. the inner ring with roller and cage assembly (cone) can be mountedseparately from the outer ring (cup).

Information

I.D. d(Ø)	220	O.D. D(Ø)	300
Width B(mm)	51	Number of Raceway Ring Rows	Single Track
Size Standards	Metric Series	Basic Load Rating, Dynamic Rating(N)	561000
Basic Load Rating, Static Rating(N)	1090000	Customs tariff — weight(kg)	9.892
Width T(mm)	51	Shoulder dimension d1(mm)	232
External diameter (inch) D(inch)	11.811	Design	Tapered roller bearing
Configuration	Universal	r (min.)(mm)	2.5
Customs tariff — weight per	1	Bore shape	Cylindrical
Width, imperial, C(inch)	1.535	Customs tariff — weight unit	kg
Customs tariff — item number	84822000	Complete bearing yes/no	Yes
Outer ring	Y32944M	Width, imperial, B(inch)	2.008
Internal diameter (inch) d(inch)	8.661	Width C(mm)	39
Cage designation	Sheet steel cage, guided by rollers	Marking cover / seal	None
Model series	32..	Bore code	44
Shoulder dimension d2(mm)	290	Shoulder dimension D2(mm)	281
Shoulder dimension D1(mm)	237	r1 (min.)(mm)	3
Customs tariff — country of origin	DE	Width, imperial, T(inch)	2.008
Engineering material	Steel	Inner ring	X32944M
Cage material	Sheet steel	-	-

Basic information

Number of Raceway Ring Rows	Single Track	Size Standards	Metric Series	Design	Tapered roller bearing
Configuration	Universal	Customs tariff — weight per	1	Bore shape	Cylindrical
Customs tariff — weight unit	kg	Customs tariff — item number	84822000	Complete bearing yes/no	Yes
Cage designation	Sheet steel cage, guided by rollers	Marking cover / seal	None	Cage material	Sheet s

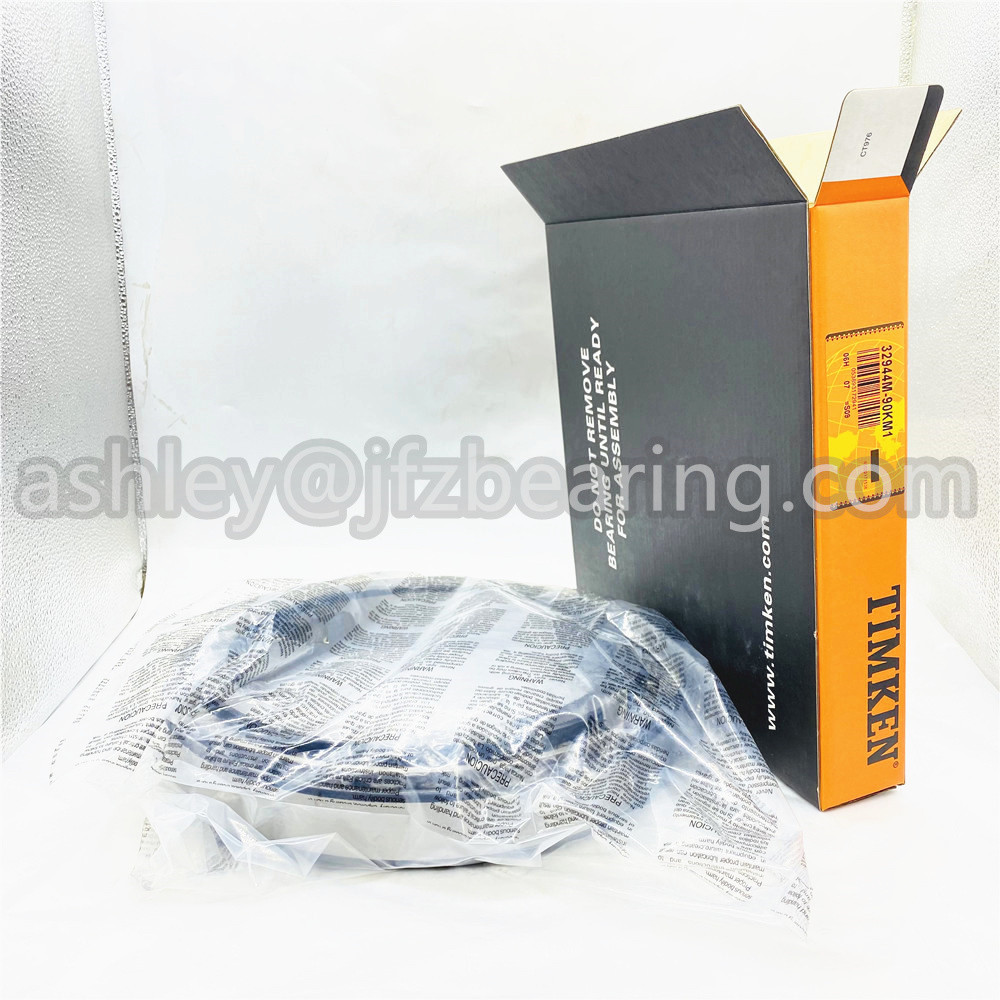

Product Picture

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
