Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4，Goog quality, Neutral or OEM

Product Categories

JFZ BEARING CO.,LTD

Contact Now

Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4，Goog quality, Neutral or OEM

Ask Lasest Price
Brand Name :	NSK
Model Number :	7004 CTYNSULP4
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4，Goog quality, Neutral or OEM

Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4

The values in the “Width (mm)” section of product specification are per-row (single-row) width even when a double-row combination product is selected (B Dimension in catalog).Please be aware that the overall width for double-row products is twice as wide (2B) as those indicated dimensions.

NSK 7004CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS
Brand : NSK
Type : Angular Contact Ball Bearings
Contact angle C : 15 Degree
Cage material TYN : Ball guided polyamide Resin
Rings material : Bearing steel (SUJ2)
Rolling elements material : Bearing steel (SUJ2)
Arrangement SU : universal Single row for matched set
Accuracy rating P4 : ISO Class 4 (ABEC – 7)
Limiting speeds Grease : 37,100 rpm Oil : 56.,500 rpm
Dynamic load rating : 11.1 KN
Static load rating : 6.55 KN
Axial load rating : 4.80 KN
Dimensions : 20mm x 42mm x 12mm
Quantity : Two bearings

Quick Details

Type:: BALL

Structure:: Angular Contact

Applicable Industries:: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining, Ball screw support

Brand Name:: NSK

Precision Rating:: P4

Seals Type:: Open

Number of Row:: Single row

Place of Origin:: Japan

Bearing Material:: Chrome Steel Bearing

Cage Material:: Bakelite Cage

Dimension:: 20x42x10 mm

Weight:: 0.07 kg

Certification:: ISO9001:2008

Service:: OEM Customized Services

Feature:: High Speed

Application:: Machinery Spindle

Sample:: Available

specification

1.High speed, wear-resisting

2Manufacturer/good prices

3.ISO9001:2008

4.China high quality bearing

5.Can OEM

6.Small order accepted

7.made in china bearing

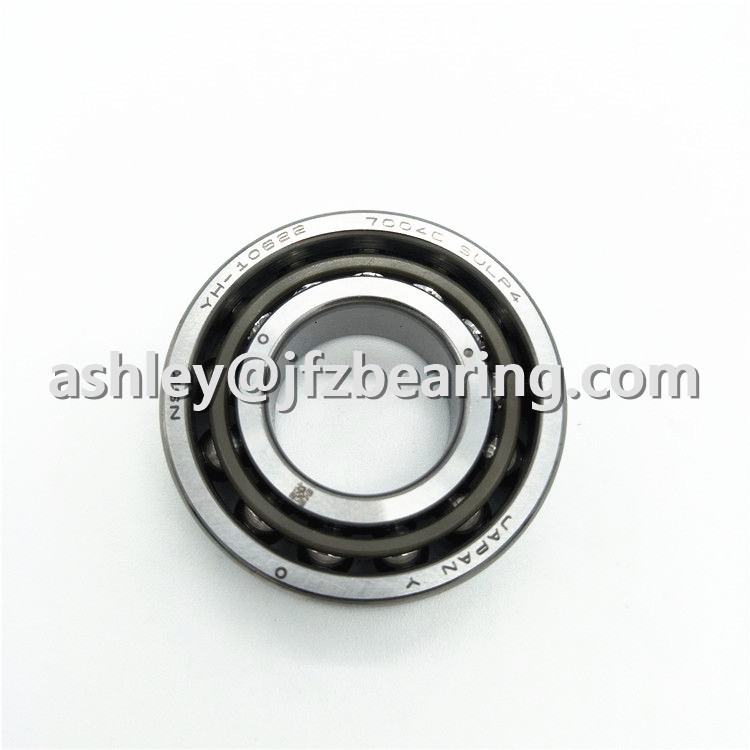

Product Picture

Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4，Goog quality, Neutral or OEM

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis

Angular contact ball bearing NSK 7004 CTYNSULP4 high precision ball bearing NSK 7004 P4，Goog quality, Neutral or OEM
