SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!

Ask Lasest Price
Brand Name :	SKF
Model Number :	BTM 100 A / P4CDBA
Price :	USD 0.5-10 PCS
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 PCS/MON
Delivery Time :	3-15 DAYS

Add to Cart

Product Details
Company Profile

SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!

DIMENSIONS

d	100 mm	Bore diameter
D	150 mm	Outside diameter
H	45 mm	Height
d1	123 mm	Shoulder diameter shaft washer (high shoulder)
D1	137.1 mm	Shoulder diameter housing washer (low shoulder)
r1,2	min.1.5 mm	Shaft washer chamfer radius
r3,4	min.1 mm	Housing washer small cham

ABUTMENT DIMENSIONS

da	min.107 mm	Abutment diameter shaft
Da	max.145 mm	Abutment diameter housing
ra	max.1.5 mm	Fillet radius
rb	max.1 mm	Fillet radius
dn	119.7 mm	Oil nozzle position

CALCULATION DATA

Basic dynamic load rating	C	41.5 kN
Basic static load rating	C0	102 kN
Fatigue load limit	Pu	3.8 kN
Attainable speed for grease lubrication		7 900 r/min
Attainable speed for oil-air lubrication		9 400 r/min
Contact angle	α	30 °
Preload class A		400 N
Preload class B		1 200 N
Static axial stiffnes for preload A		350 N/µm
Static axial stiffnes for preload B		529 N/µm
Reference grease quantity	Gref	22 cm³

NOTES
Speed values are applicable to bearings with light preload (suffix DBA). For bearings with a heavy preload (suffix DBB), attainable speeds are about 75% of the quoted values.

MASS

Mass bearing

2.5 kg

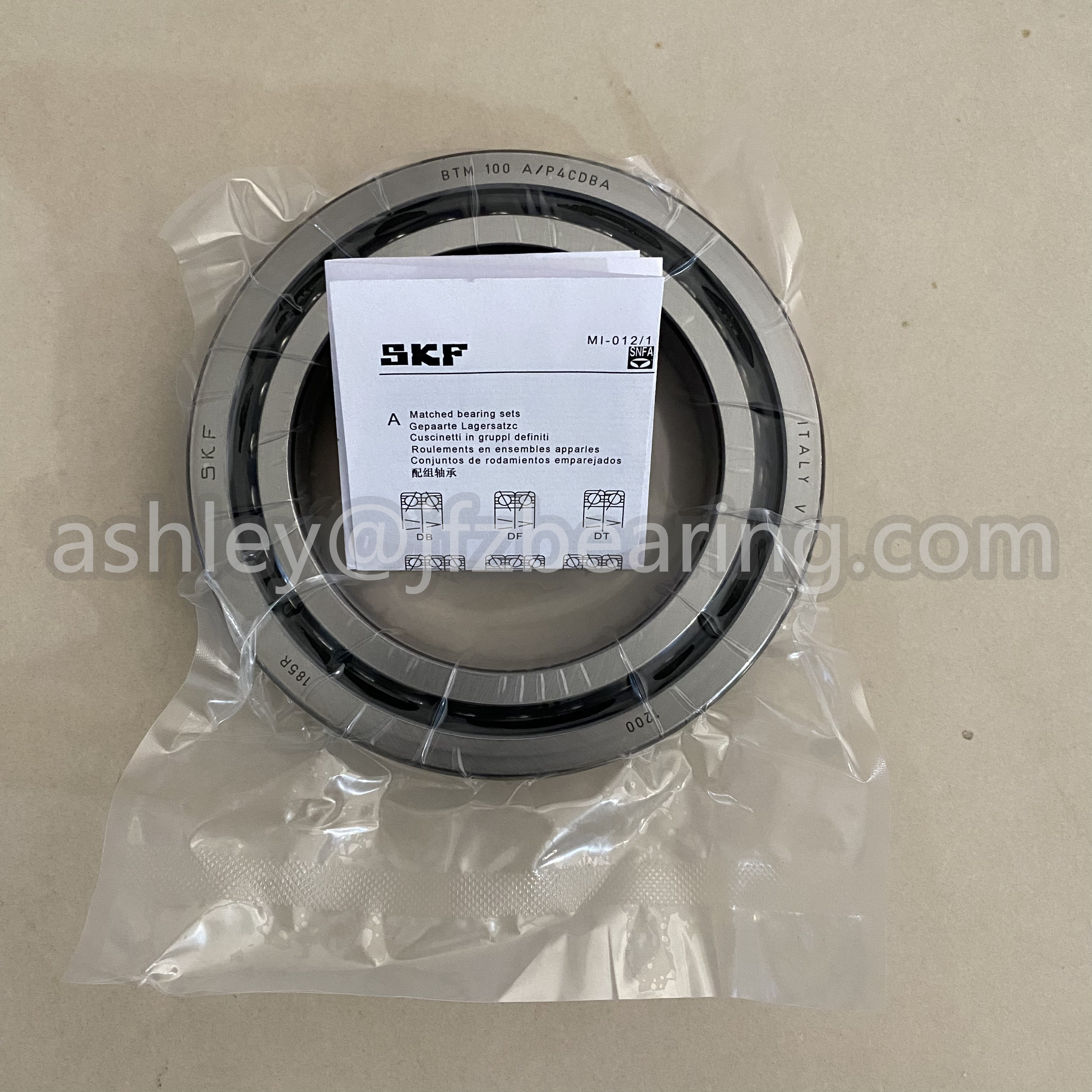

Product Picture

SKF Angular Contact Thrust Ball Bearing BTM 100 A / P4CDBA,-Double direction, super-precision FACTORY NEW!

Packing , Payment , Delievry and Stock

Packaging
1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2)Industrial Bearings packaging	a)plastic tube + carton + pallet
	b). plastic bag +kraft paper + carton + pallet
3)According to the requirement of customers'
Payment
1) T/T:30% deposit, 70% should be paid before shipment.
2) L/C at sight. (high bank charge, not suggest, but acceptable )
3) 100% Western Union in advance. (especially for air shipment or small amount)
Delivery
1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
Stock
1)Availability and supply capacity on a certain basis
