INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

Product Categories
JFZ BEARING CO.,LTD
Contact Now
    Buy cheap INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking from wholesalers

    Buy cheap INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking from wholesalers
    • Buy cheap INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking from wholesalers
    • Buy cheap INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking from wholesalers
    • Buy cheap INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking from wholesalers

    INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

    Ask Lasest Price
    Brand Name : INA
    Model Number : GE70-KRRB
    Price : USD 0.5-10 PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 PCS/MON
    Delivery Time : 3-15 DAYS
    • Product Details
    • Company Profile

    INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking

    Main Dimensions & Performance Data
    d70 mmBore diameter
    DSP125 mmOutside diameter
    B48.5 mmWidth
    B166 mmLocking collar total width
    nG Grease6,300 1/minLimiting speed for grease lubrication
    Cr66,000 NBasic dynamic load rating, radial
    C0r44,000 NBasic static load rating, radial
    Cur2,300 NFatigue load limit, radial
    ≈m2.08 kgWeight

    Radial insert ball bearing

    Dimensions
    C28 mmWidth, outer ring
    C232 mmSealing total width
    S21.5 mmDistance raceway
    d185.2 mmRib diameter inner ring
    D1109 mmOutside diameter seal
    Ca8.9 mmDistance to lubrication hole
    d396 mmOutside diameter locking collar/locknut
    W6 mmWidth of flats

    Additional information
    f014.4Calculation factor

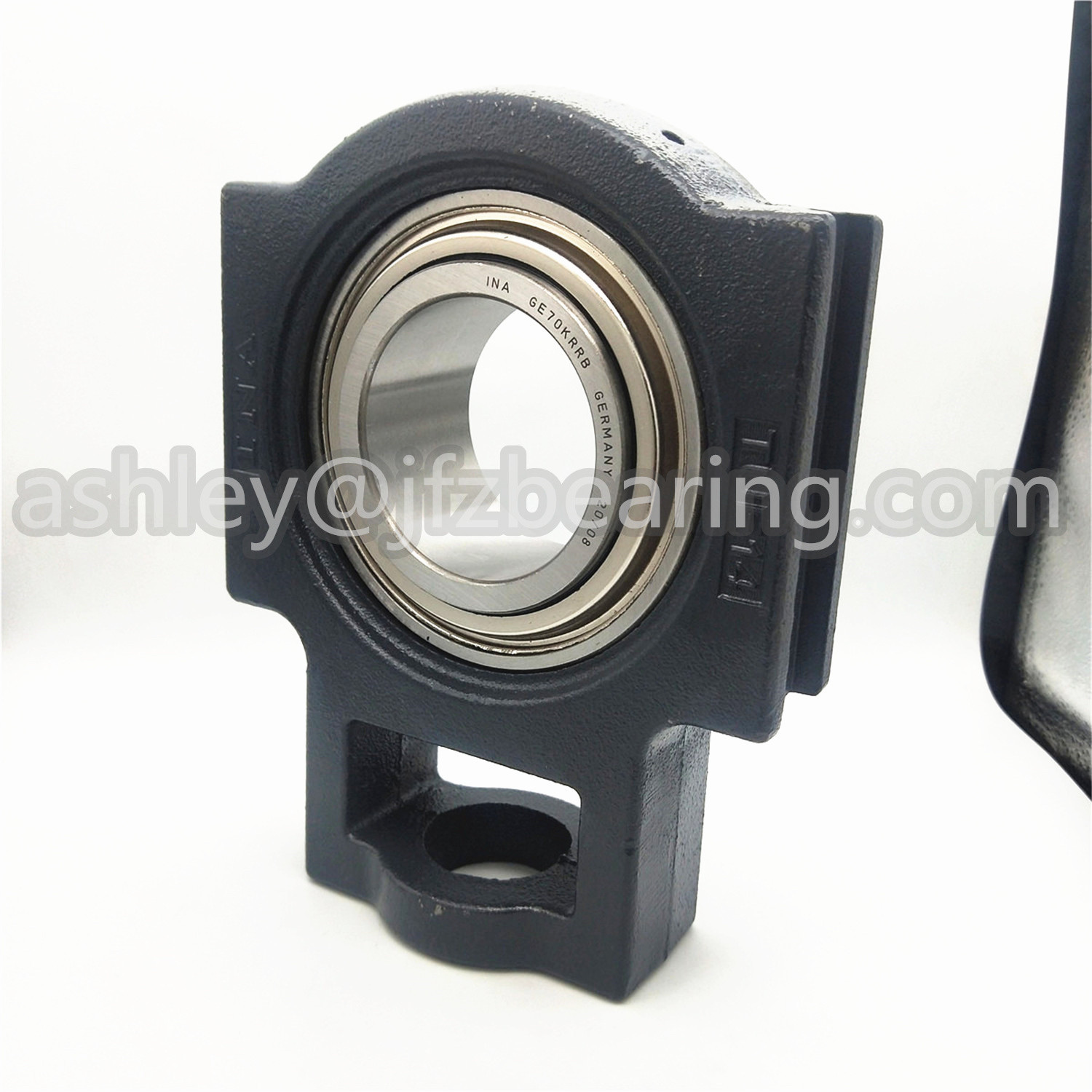

    Product Picture

    INA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar LockingINA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar LockingINA (SCHAEFFLER) GE70-KRR-B Ball Insert Bearing - Round Bore, 70 mm ID, 125 mm OD, 66 mm Width, Eccentric Collar Locking


    Packing , Payment , Delievry and Stock

    Packaging
    1)Commercial Bearings packaging: 1pc/plastic bag + color box + carton + pallet
    2)Industrial Bearings packaginga)plastic tube + carton + pallet
    b). plastic bag +kraft paper + carton + pallet
    3)According to the requirement of customers'
    Payment
    1) T/T:30% deposit, 70% should be paid before shipment.
    2) L/C at sight. (high bank charge, not suggest, but acceptable )
    3) 100% Western Union in advance. (especially for air shipment or small amount)
    Delivery
    1) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
    2) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
    3) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
    Stock
    1)Availability and supply capacity on a certain basis
